Place two PET bottles side by side, each from a different mold. But the difference is often apparent immediately. Usually the cause is the cavity surface of the mold, not the resin. This article describes why a bottle is clear or cloudy on the mold side. It includes: qualities of a High quality PET preform mold; the role of polish and surface finish in clarity; and how to choose a manufacturer.
It also addresses cooling design, gate placement and machine matching. All of these work together with the mold to produce a clear, steady bottle.

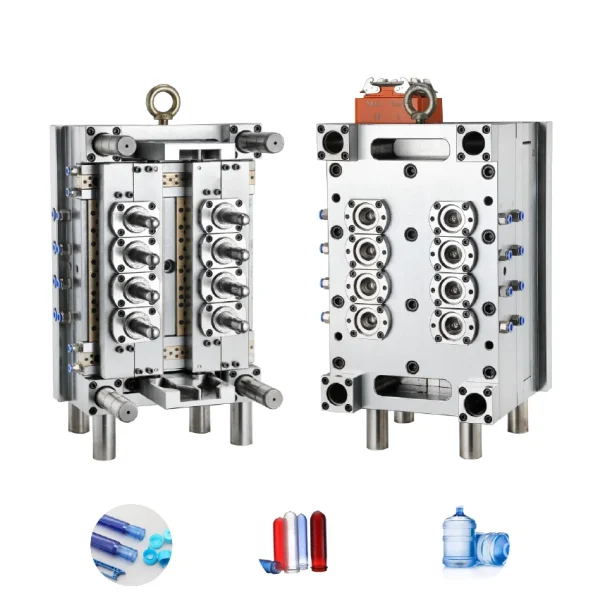

What Is a High Quality PET Preform Mold?
For a high quality PET preform mold, it’s not all about the steel it’s made from. It’s about cavity precision, surface finish, and uniform everywhere-in-each-cavity cooling. The grade of steel matters, but that’s only part of the story.
When people are looking for pet bottle preform mold, they often think the resin grade is the main cause of clarity problems. In fact, the state of mold cavity is often more important.
What makes a high quality mold different from a mediocre one is three things:
- Carefully cut cavities with almost no tool marks or pits on the surfaces
- In multi-cavity molds, cooling channels are built the same way in every cavity.
- Tight restrictions on wall thickness and on neck shape

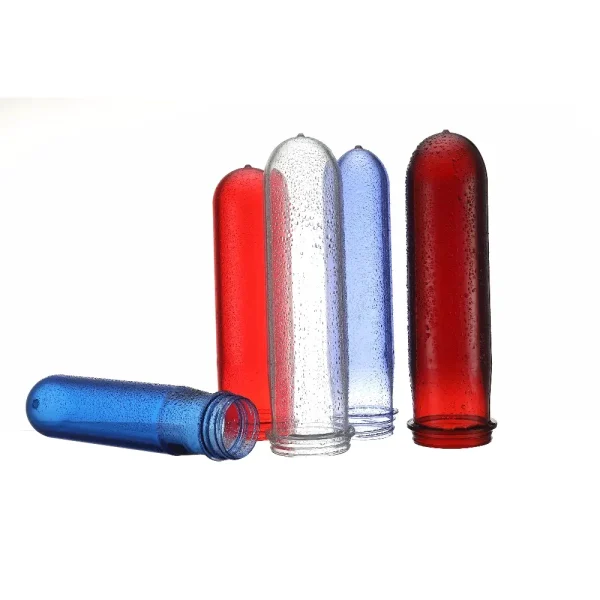

Each of these is found in the finished preform. A mold that is good in all three respects tends to produce preforms with fewer flaws and more uniform wall thickness from cavity to cavity.
Benefits of Using High-Quality PET Preform Molds Beyond Clarity
The benefits of high quality PET preform molds go beyond esthetics. The reject rate is likely to be lower, due to fewer preforms exhibiting flow lines, sink marks or short shots. Operator guesswork is reduced due to effective cooling, so cycle times are also more consistent.
Another plus is the life of the mold. A well-finished cavity will last longer than a roughly finished one. That means fewer costly re-polishing jobs over the life of the mold. The first thing you notice is clarity but its really a sign of good build quality overall.
How Do High Quality PET Preform Molds Improve Clarity?
The improved clarity of bottles is mainly due to the cavity polish and uniform surface finish of high quality PET preform molds. During injection the surface of the mold reproduces the preform almost exactly. So any imperfection in the cavity becomes a defect on the bottle.

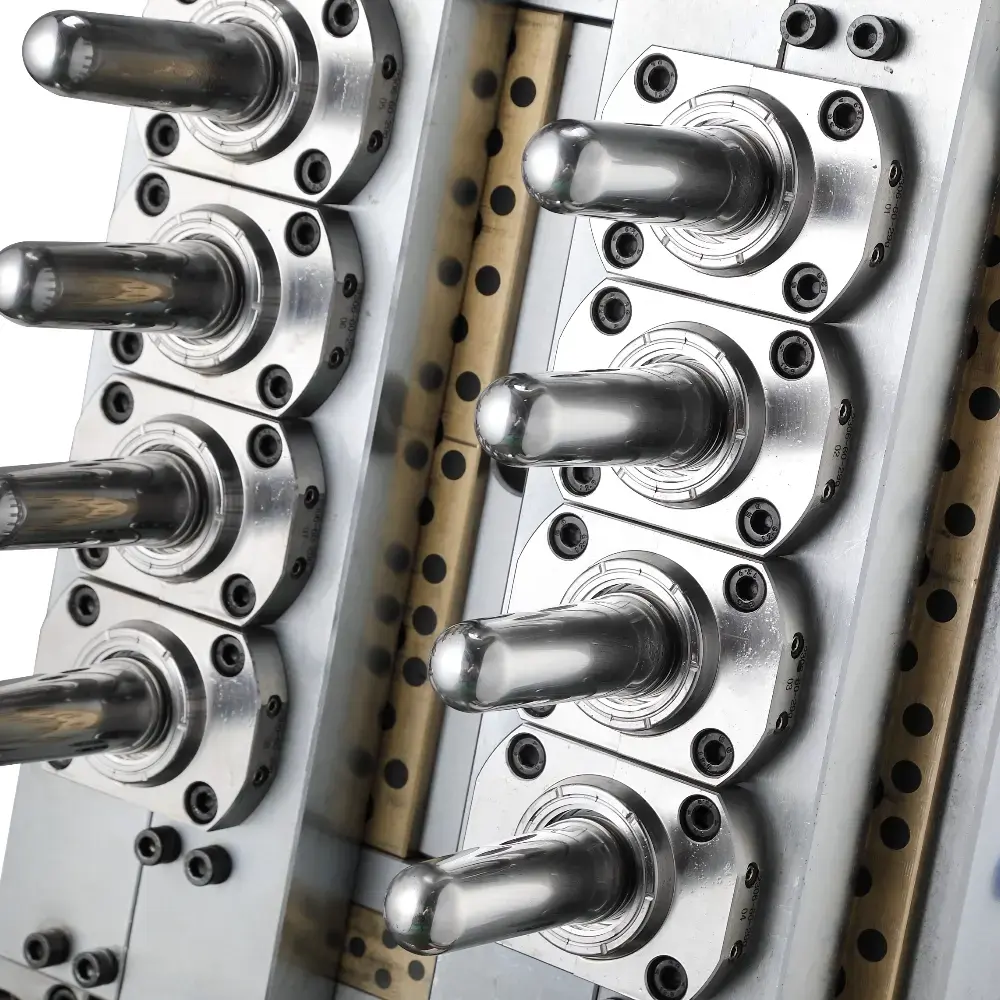

- Polish: Why Cavity Surface Quality Matters Most
This is why the plastic is molded to closely match the mold surface . Cavity polish matters most . Any roughness, tool marks or small pits in the cavity are directly printed onto the preform. The texture, once on the plastic, diffuses the light instead of allowing it to pass thru cleanly.
This is why polish is often the single biggest factor in clarity. It matters more than resin choice and often more than injection settings.
- Surface Finish Grades and Their Optical Impact
Surface finish of moldings is often graded by industry systems such as SPI (Society of the Plastics Industry). The grades go from simple machined finishes to high-polish, mirror-like finishes. The higher the grades the more expensive to produce. But that cost manifests as real, visible clarity in the finished bottle.
| Finish Grade | Description | Typical Use Case | Clarity Impact |
| High-polish / diamond buff | Mirror-finished with diamond compound | Beverage and cosmetic bottles that need high clarity | Very little light scatter, almost glass-like |
| Fine stone finish | Light satin texture, still smooth | General packaging with average clarity needs | A little haze shows up in bright light |
| Textured stone finish | Fine tool texture stays visible | Opaque or colored bottles | Clarity is not the goal here |
| Standard machined finish | Cut as-is, no extra polish | Industrial or hidden parts | Not right for clear PET packaging |
- Finish Consistency Across Multi-Cavity Molds
One thing that most buyers miss is how even the finish is all over the cavities. One or two cavities of a mold finished to a lower grade may make uneven bottles while the rest of the mold is well polished throughout. Not only do most cavities in multi-cavity pet preform mold, every cavity should have the same polish grade.
Beyond Polish: Other Design Factors That Affect Clarity
The Polish alone does not clarify. It collaborates with a handful of other design decisions to determine the shape of the bottle.
- Cooling channel layout- Uneven cooling changes the way plastic sets which can lead to haze
- Gate design and placement- poor gate location results in visible flow lines in the preform.
- Wall thickness uniformity- bent light will be unevenly bent with distortion
PET Preform Mold Design Considerations for Clarity
Good pet preform mold design balances several goals at once, not just polish. Two choices in particular make a huge difference to clarity.
- Balancing Cooling Speed and Optical Quality
Every molder wants that and faster cooling means cycle time and output. But too fast or uneven cooling can produce stress marks or patches of haze. Nothing you do later in process tuning can fix that completely.
- Vent Placement and Air Trap Prevention
Poor vent location traps air inside the cavity during injection. The trapped air leads to burn marks or blemishes on the surface of the preform. Both mar clarity even in a well polished cavity.
PET Preform Injection Molding
Mold quality and process control work together in PET preform injection molding. A good mold, in the wrong machine, still produces a bad bottle.
- Shot to shot consistent injection speed and pressure.
- Melt temperature was maintained to the resin’s specification.
- The cycle time is balanced, not just the fast output, so the plastic fully crystallizes.
PET Preform Molding Machine Compatibility
Each pet preform molding machine should match with a high quality mold. Put a great mold in the wrong machine and you lose the clarity the mold was built to give.
- High Quality PET Preform Injection Molding Machine Requirements
A high quality PET preform injection molding machine requires consistent clamp pressure, precise barrel temperature and repeatable injection speed, shot after shot. A well-polished mold without them gives uneven results.
- Matching Machine Precision to Mold Grade
Run a high-polish, top-grade mold on an old, less-precise press, and it can hold back the clarity the mold was created for. A high-quality PET preform molding machine and a high-grade mold need to match in precision, not just in size.
Mold-Sourcing Mistakes That Hurt Bottle Clarity
If you choose a mold only on price or lead time, you’ll make the same handful of mistakes again and again.
- Choosing a lower finish grade and then trying to fix haze with process settings
- And every cavity in a multi-cavity mold was assumed to be polished the same without asking for proof.
- Omitting vent and gate design checks during mold approval, and only checking cavity polish
- Using old equipment with a new, high-precision mold without checking compatibility
What to Look for in PET Preform Mold Manufacturers
Those who value clarity in a buyer must look beyond the price and lead time when choosing PET preform mold manufacturers.
- Written standards for surface finish with a defined polishing process.
- You can check sample preforms by eye or with testing equipment before ordering.
- Demonstrated experience in clarity-sensitive work, such as beverage, cosmetic or pharma packaging
- Written commitments on consistency across multi-cavity tooling
Frequently Asked Questions
Does mold polish affect bottle clarity?
Yes mold polish is one of the biggest factors for bottle clarity. The preform is an almost exact copy of the cavity surface, so a rough cavity will make a hazy bottle, no matter how good the resin is.
- Higher polish grades reduce light scatter from the finished bottle
- Every preform it makes shows even the smallest tool marks in the cavity
What is the best surface finish grade for clear PET bottles?
Clear PET bottles are best finished with a high-polish, mirror grade cavity finish. This grade maintains the surface smooth so that the light passes thru the wall, not scattering.
- The lower end grades are good with opaque or colored packaging
- The right grade depends on how much clarity of the product is needed
Can a bad mold be fixed by better injection settings?
No, sir. The poor cavity finish of a pet preform mold cannot be completely solved by adjusting the injection process. Some flaws can be fixed with better settings, but the texture baked into the cavity itself can’t be removed.
- Process tuning helps with flow lines and minor surface problems
- It can’t substitute for a proper cavity polish
The effect of cooling channels on PET bottle clarity
Clarity 1. Cooling Channel Layout. This defines the uniformity of the preform cooling. If the cooling is uneven, it can influence the way the plastic sets and can result in visible haze even in a polished cavity.
- Even cooling of all cavities Reduces cavity-to-cavity variations
- You have to do the cooling design and polish together, not separately
What buyers should check before selecting mold supplier?
Buyers should check the written finish standards, sample availability and the supplier’s track record in clarity sensitive work before placing an order for a mold. These checks can help reduce the risk of non-uniform results when the mold is running.
- Request sample preforms, not just a spec sheet
- Get promises of consistency in writing, not just spoken promises
How long is the lifespan of a high quality PET preform mold?
A high quality PET preform mold will generally have a longer lifespan than a lower grade one because a better cavity finish will resist wear better. The life span depends on the number of cavities, the volume of the run and the maintenance. So you might want to ask the mold manufacturer for your specific plan.
- Proper cooling and regular maintenance extend the life of the mold
- Higher grade finishes need to be repolished less often
Conclusion
Bottle clarity directly measures the high quality PET preform mold. Good cooling design, polish, even finish all work together. No amount of process tuning can make up for a poorly finished mold.
