A custom mold can lock in your bottle design for years to come. That’s why it’s worth getting it right before you spend money. When startups are looking to buy pet bottle preform mold, one of the first questions that often comes up is: Can a small brand afford custom tooling? Years of work in this field show that the answer is not about company size. It’s about planning.
This guide will explain what PET preform molds are. It also discusses design and budget decisions and how much freedom small buyers have when purchasing a PET bottle preform mold for the first time.
Key Takeaways
- Tooling cost- molds can be a few thousand dollars. Larger molds can cost upwards of $10,000.
- Cavity count- Fewer cavities mean less expense, but will produce fewer preforms per cycle.
- Used molds- A used mold can save money, but may show signs of wear.
- Design locks in- Neck size and preform weight are hard to change once the mold is cut.
- After-sale support- A good supplier will offer trials, spare parts and future changes.
What Is a PET Mold, Exactly?

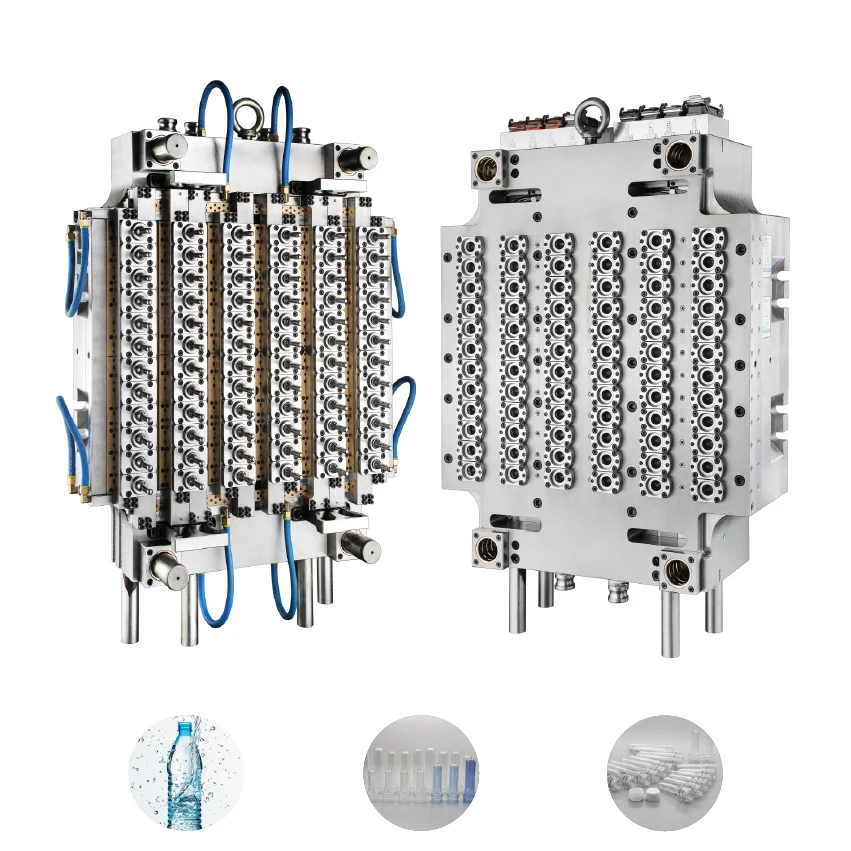

PET mold is a tool made of steel. It creates a preform from melted PET plastic. That preform is later blown into a whole bottle. This tool is also known as a pet preform bottle mold. Molds can hold one cavity for tests, or as many as 96 cavities for big runs.
| Feature | Typical Range | Why It Matters |
| Cavity count | 1 to 128 cavities | Sets output per cycle |
| Steel grade | Hardened tool steel | Affects mold lifespan |
| Lead time | 30 to 90 days | Impacts launch timing |
| Mold weight | Varies by cavity count | Affects machine fit |

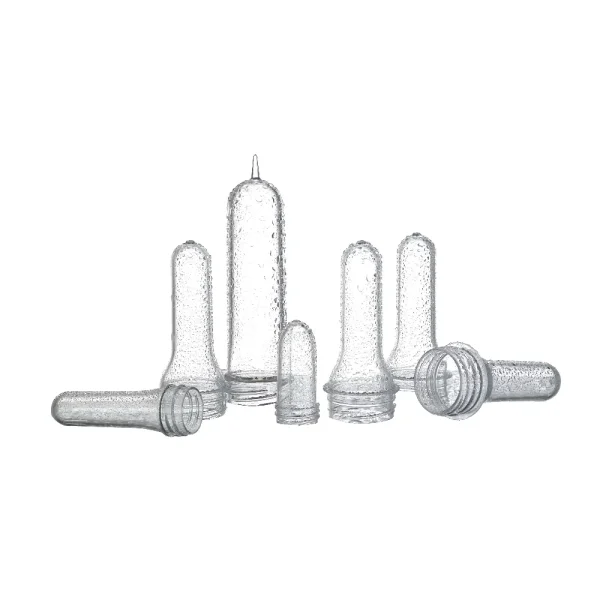

- What Are PET Preforms Made Of?
PET preforms are produced from polyethylene terephthalate resin. It is a clear plastic that is safe for food. People like to buy pet bottle preform mold because it’s transparent and easy to recycle.”
- What Does PET Mean in Plastic Bottles?
PET is short for polyethylene terephthalate. It is a plastic of some sort. Most bottles have a small triangle with a “1” inside it at the bottom. This number is for PET.
- Is PET Hard to Injection Mold?
PET is difficult to form. “First the plastic must be dry. And it needs fast, even cooling too. Without this the preform can appear hazy or break too easily.
How PET Bottle Preform Injection Molding Works
PET bottle preform injection molding melts dry resin and forces it into a cold mold under high pressure. The plastic is molded into shape. It cools rapidly and is discharged as a finished preform. This can happen in a matter of seconds.
- The machine is charged with dry PET resin
- Resin melts in heat
- The screw pushes the melt into the closed mold
- Cold channels quickly set the shape
- The preform is ejected, inspected and then packed
PET Bottle Preform Injection Molding Machine Basics
In a PET bottle preform injection molding machine, three things are controlled, clamp force, injection pressure and cooling time. The machine size must be the same as the mold size. Please check with your supplier before ordering.
How Valve Gate Molds Differ From Standard Molds
A PET valve gate preform bottle mold has a small valve to control the flow of plastic into each cavity. Instead a standard mold uses a simple small opening. Valve gate molds cost more, but they produce preforms that are more consistent batch to batch.
Can Startups Buy Custom PET Preform Molds?
Yes, we can custom make PET preform molds for startup. Most makers have a minimum order based on cavity count. Small molds are a common first step, like 4 or 8 cavities. “Now, it’s easier to get these little orders than it was.
You still have a real choice of preform weight, neck size and bottle shape. 28mm PCO is a common neck size and cheaper. It utilises an existing mold base. A new shape costs more and takes longer to build.
If it’s your first order, expect a design check, a test run and at least one round of minor fixes before full-scale production starts.
Designing Your First PET Bottle Preform Mold
The first mold design is basically three choices: neck size, weight of the preform, and number of cavities. Every choice impacts the price and the appearance of the bottle.
- Choosing the Right Pet Bottle Preform Mold Size
The right pet bottle preform mold size is based on your bottle size. It could be a small 200ml bottle or a big 5-litre jug. Bigger bottles need heavier preforms, which in turn affects the cooling time.
- Neck Finish, Weight, and Wall Thickness Decisions
When the mold is cut, the neck size, preform weight, and wall thickness are fixed. Any change after that is a new mold. Common neck sizes are 28mm PCO and 30/25. The right one, the one you need for your cap and store shelf.
- How Long Does a Custom Mold Design Typically Takes
Custom mold design time is 30-60 days. This is from the approved drawing to the initial sample. Valve gate molds may take longer.
What Does a PET Preform Mold Cost?
The price of a PET preform mold will vary by cavity count, steel grade, and design complexity. Simple single cavity molds are the lowest in cost. High cavity valve gate molds are the most expensive.
Pet Preform mold Price by Cavity Count
The number of cavity increases, the price of pet preform mold increases. Each cavity requires its own carefully cut piece of steel. A 4 cavity mold is cheaper than a 32 cavity mold. But it also produces many fewer preforms per cycle.
Factors That Push Custom Mold Costs Higher
- Fully custom shape instead of a standard base
- A normal valve gate system vs. a valve gate system
- Clear the preform strictly on how clear it should be
- Rush order that accelerates the design work
Budget for mold cost as a separate line item. Keep it out of resin and machining costs. It is a one off cost that pays for itself over many production runs.
New vs Used PET Preform Molds
There are 3 main options: a new custom mold, a semi-custom mold or a used mold. If you want to buy pet bottle preform mold, each one fits different budgets.
If you are still testing the market, a used PET preform mold for sale can be a smart decision. It’s cheaper to start with. But you might have less choice in number of cavities and neck size If you find a pet bottle preform mold for sale, do a careful check of it first. The primary risk is wear, as the metal inside wears away over many cycles. Always ask for shot count, care records and sample preforms before buy pet bottle preform mold.
| Option | Price Range | Lead Time | Flexibility |
| New custom mold | Higher | 30 to 90 days | Full design control |
| Semi-custom mold | Mid-range | 15 to 45 days | Limited to standard bases |
| Used mold | Lower | Immediate to a few weeks | Fixed to existing design |
How Preform Costs Affect Your Final Bottle Price
Preform prices affect your final bottle cost directly. That is the price of the mold and the weight of the resin.
- 1 Litre PET Bottle Preform Price Breakdown
The price for a 1-liter PET bottle preform is primarily driven by the resin weight. Bigger preforms need more raw plastic. Resin prices change over time so always ask for a new quote, not old numbers.
- Balancing Upfront Tooling Cost vs Per-Unit Price
The cost of the mold is divided by the number of bottles you make. So the more you make, the cheaper it is per bottle. An expensive start means more cavities in a mold. But it does bring the cost of each preform down when you get to high volumes .
Questions to Ask Before You Buy a Custom Mold
- What cavity number suits your production volume?
Make sure the number of cavities matches how many bottles you anticipate selling each month, not only your initial order.
- Can the mold change later as you scale?
Later some molds might develop some additional cavities or parts. Others cannot.” Get it in writing before you purchase a pet bottle preform mold.
- What support do I get after I buy pet bottle preform mold?
Before you commit, ask about mold trials, spare parts, and a clear plan for care.
Frequently Asked Questions
What are PET molds used for?
A PET mold melts the plastic and forms it into preforms. The preforms are then blown into bottles for beverages, food and personal care products.
What are PET preforms made out of?
PET preforms are produced from polyethylene terephthalate resin. This resin is dried, melted and pushed into the mold to make each preform.
Is PET difficult to injection mold?
PET is difficult to mold. This is mainly because it reacts to moisture and heat. Careful cooling of the mold and thorough drying of the resin will fix for most problems.
What is PET in plastic bottles?
PET = polyethylene terephthalate. It is the standard plastic from which clear drink bottles are made. Look for number 1 inside the recycling symbol.
What is the cost of a PET preform mold for startups?
A PET preform mold for startups is often cheaper at low cavity counts. Less cavities, less steel, less machining time.” Cavity count and design influence real prices so ask your supplier for a direct quote.
Is it safe to purchase used PET preform mold?
You can buy a used PET preform mold safely. Just ask for the cycle history, an inspection report and sample preforms first.
- Ask for total shot count before you buy pet bottle preform mold
- Ask for a test drive before you pay the full price
- Check the tonnage and neck size to make sure it fits your machine
Conclusion
The best way to decide on a PET bottle preform mold is to plan the cavity count, budget and production volume together from day one. Startups can begin with used molds and semi-custom bases for a fraction of the cost.
Huadian mold Co., Ltd. is ready for first-time buyers on cavity count, mold design and after-sales care for startups ready to move forward. This allows you to buy pet bottle preform mold with confidence.
